EC PU RESIN 6500 LC
A Speciality Coating Division Product
General Specification
| Parameter | Value |
|---|---|
| Appearance | Transparent |
| Solids | 60 ±1% |
| Specific Gravity | 1.02 ±0.02 |
| Shelf Life | 1 Year |
Bath Preparation
| Component | Quantity |
|---|---|
| 6500 LC | 180ml |
| D.M. Water | 820ml |
Note: Mix thoroughly and continue circulation through cartridge filter. Circulation should be such that it filters about 4 times of bath per hour.
Operating Data
| Parameter | Value |
|---|---|
| Conductivity | 900-1000 μs |
| pH | 4.2-4.8 |
| RI | 12-15 |
| MEQ | 45-55 |
| Solvent (Gloss & Flow) | 4-5% |
| Cathode : Anode | 4:1 |
| Cure Temperature / Time | 120-150°C / 30 min |
Performance Parameter
| Test | Result |
|---|---|
| Salt Spray | 1200-2000 hours (Depends on baking temp) |
| Pencil Hardness | 5H+ |
| Acetone Double Rub | 500-4500 (After 24 Hours, depends on baking temp) |
| Flow and Gloss | Excellent |
| Abrasion Resistance | 5 cycles from Huber test |
Note: All performance parameters are tested on brass panel.
Interested in this product?
Contact us for detailed specifications, pricing, and technical support.
Get a QuoteProduct Gallery
Our [Premium Products] Showcase

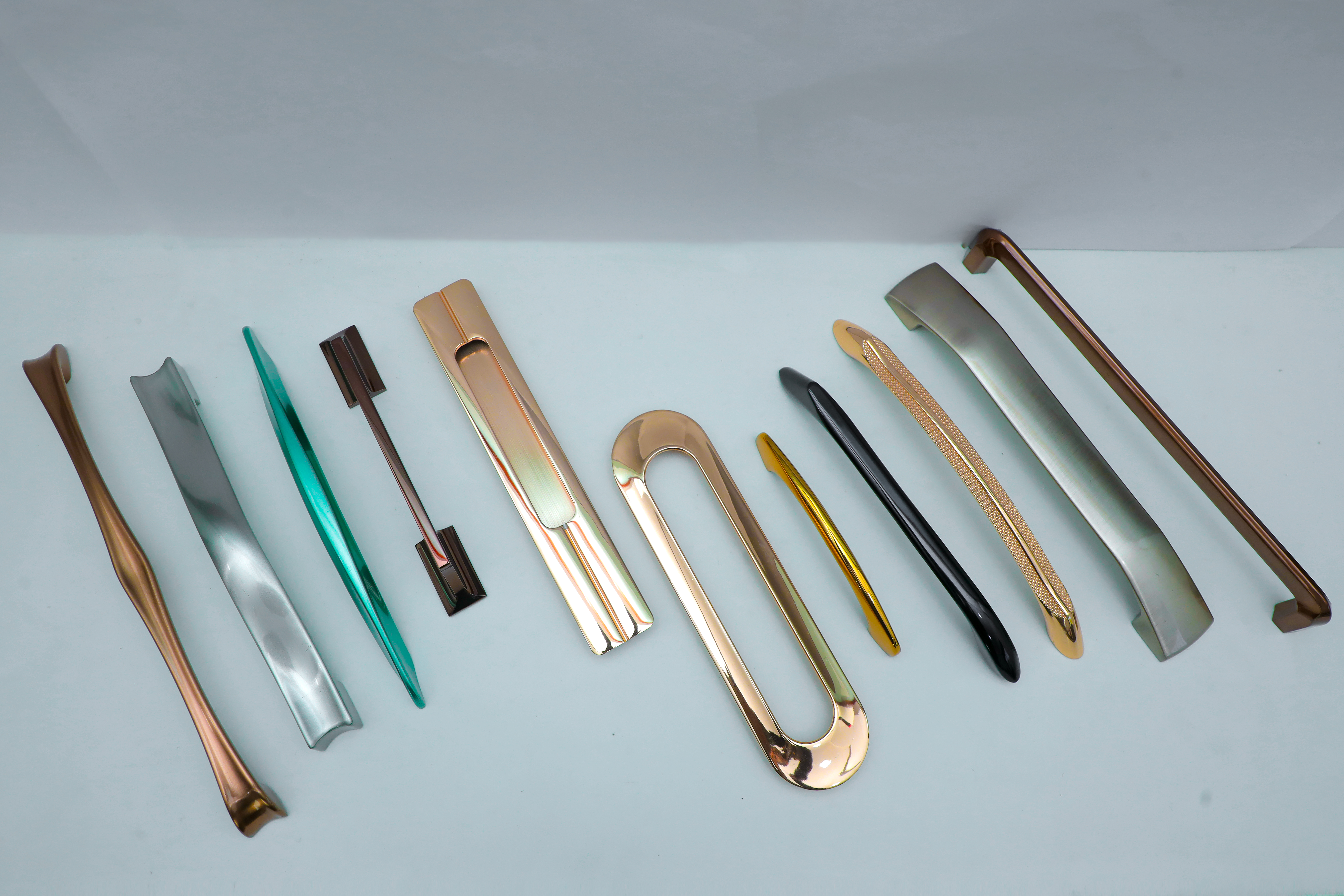

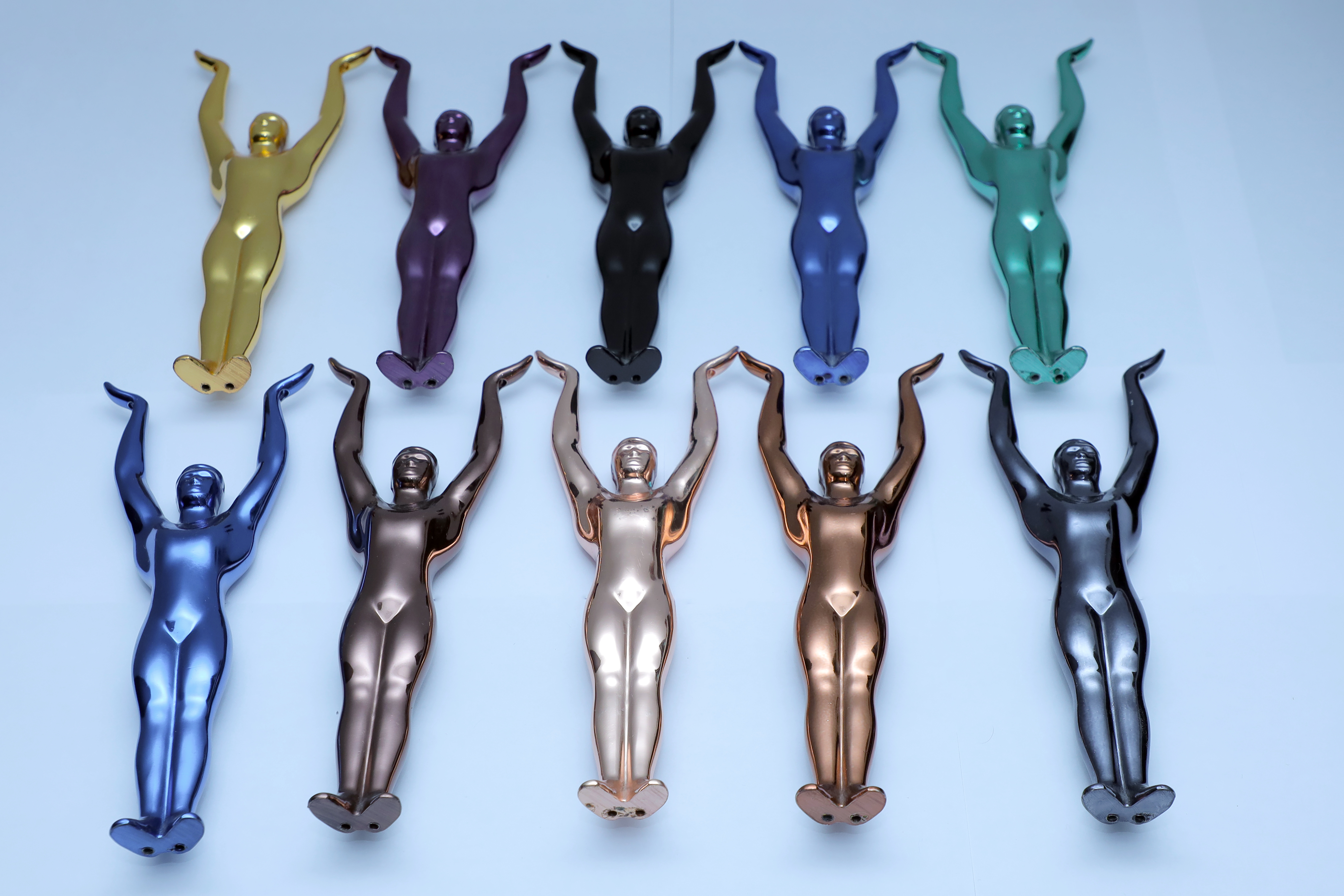

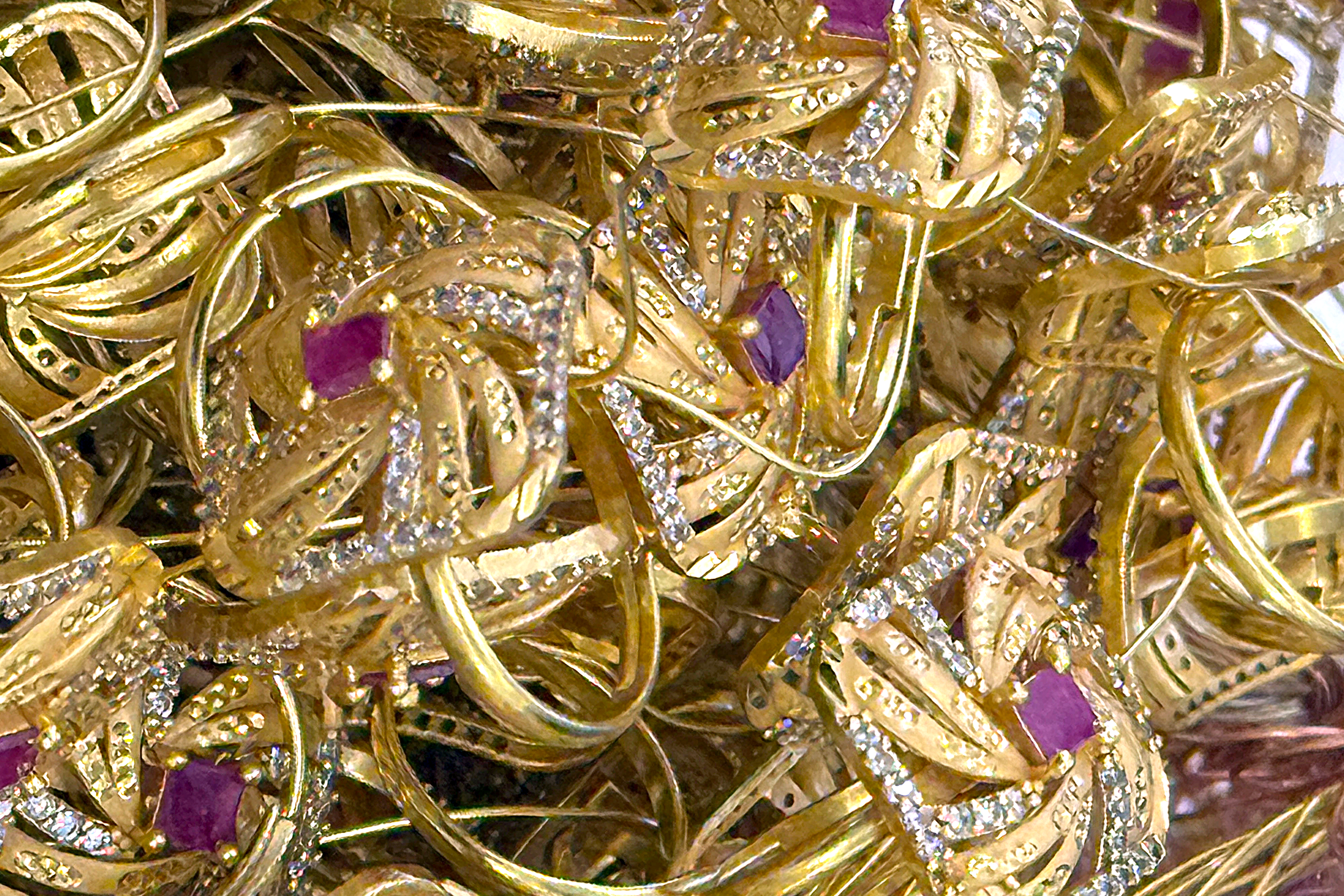

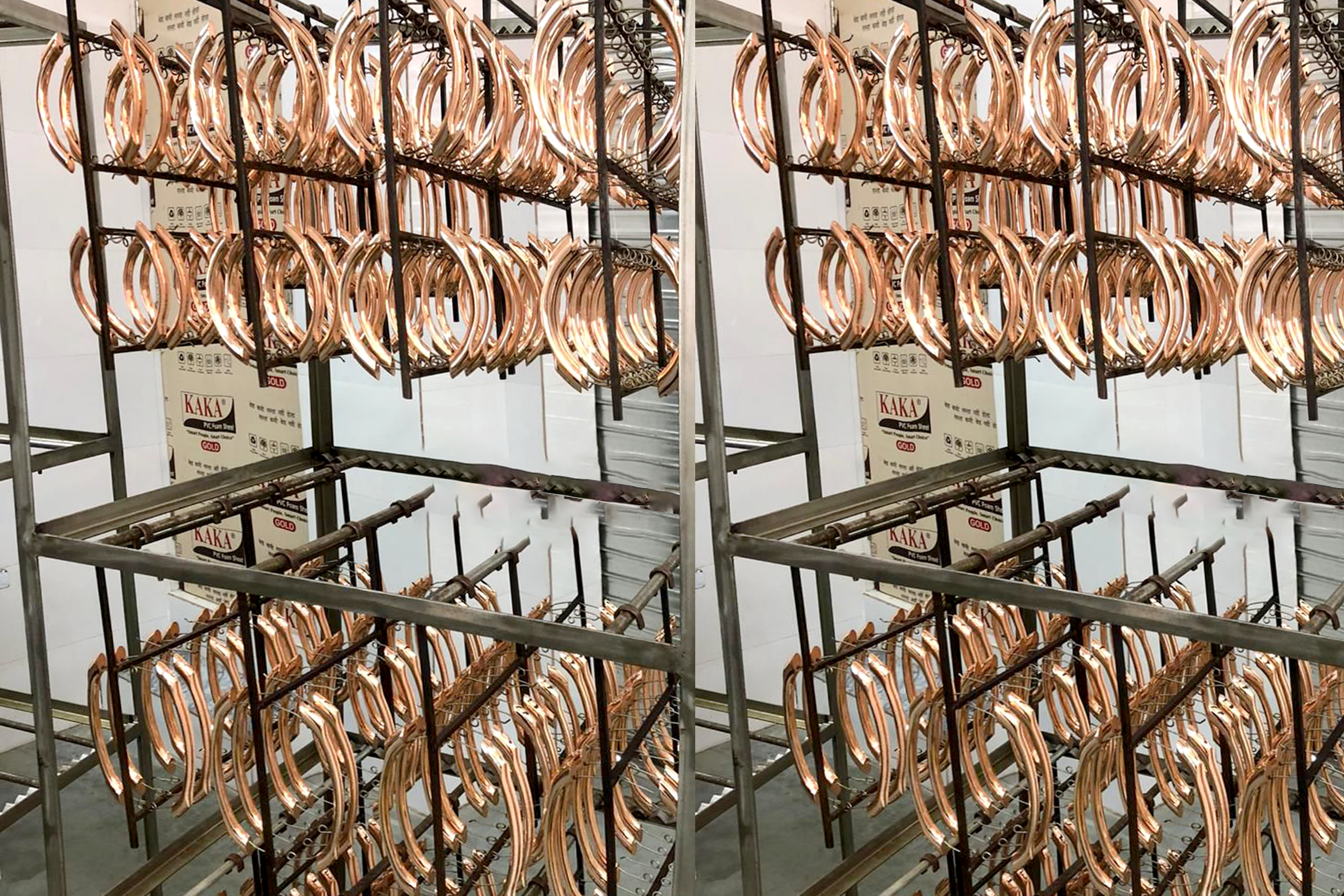

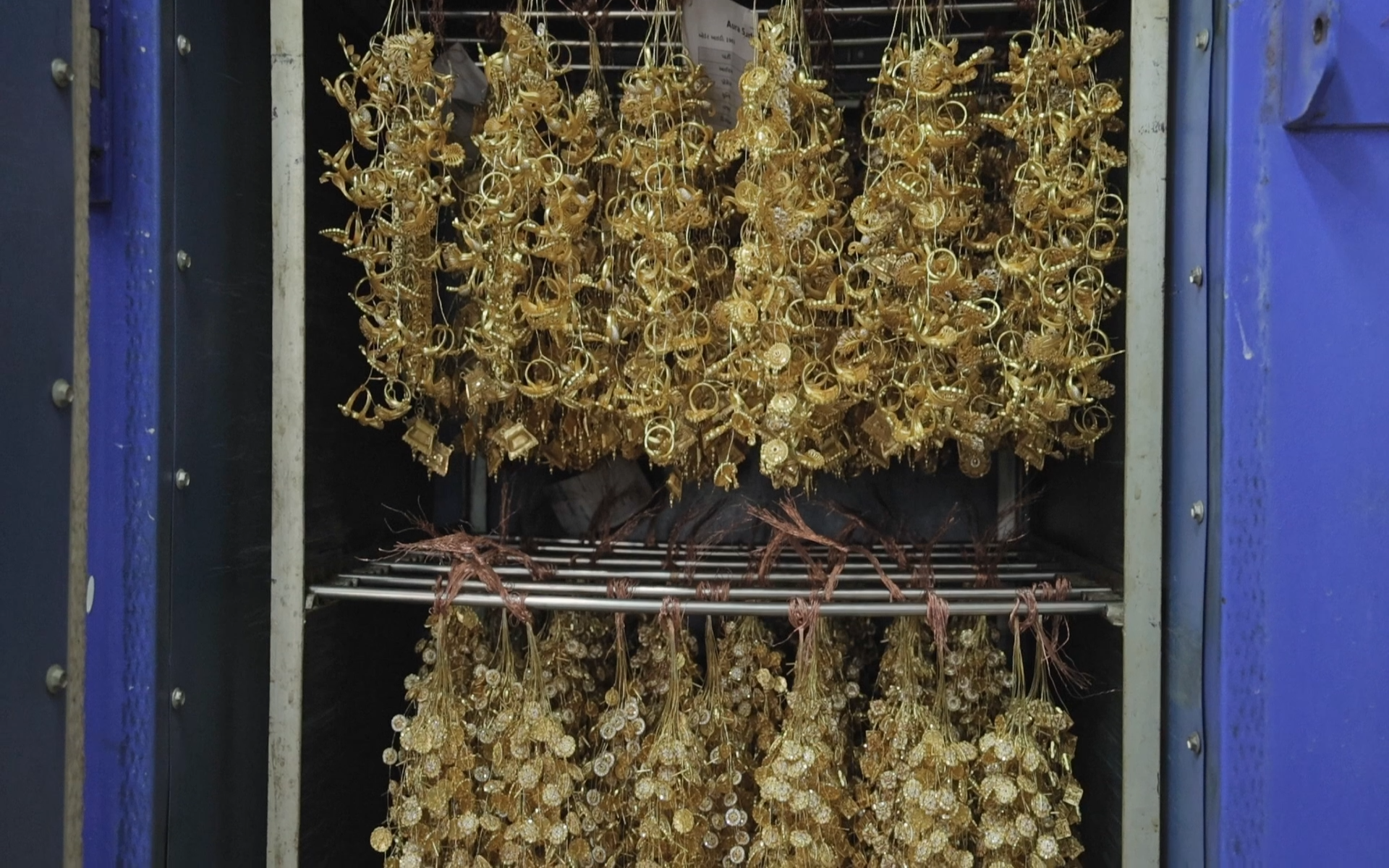

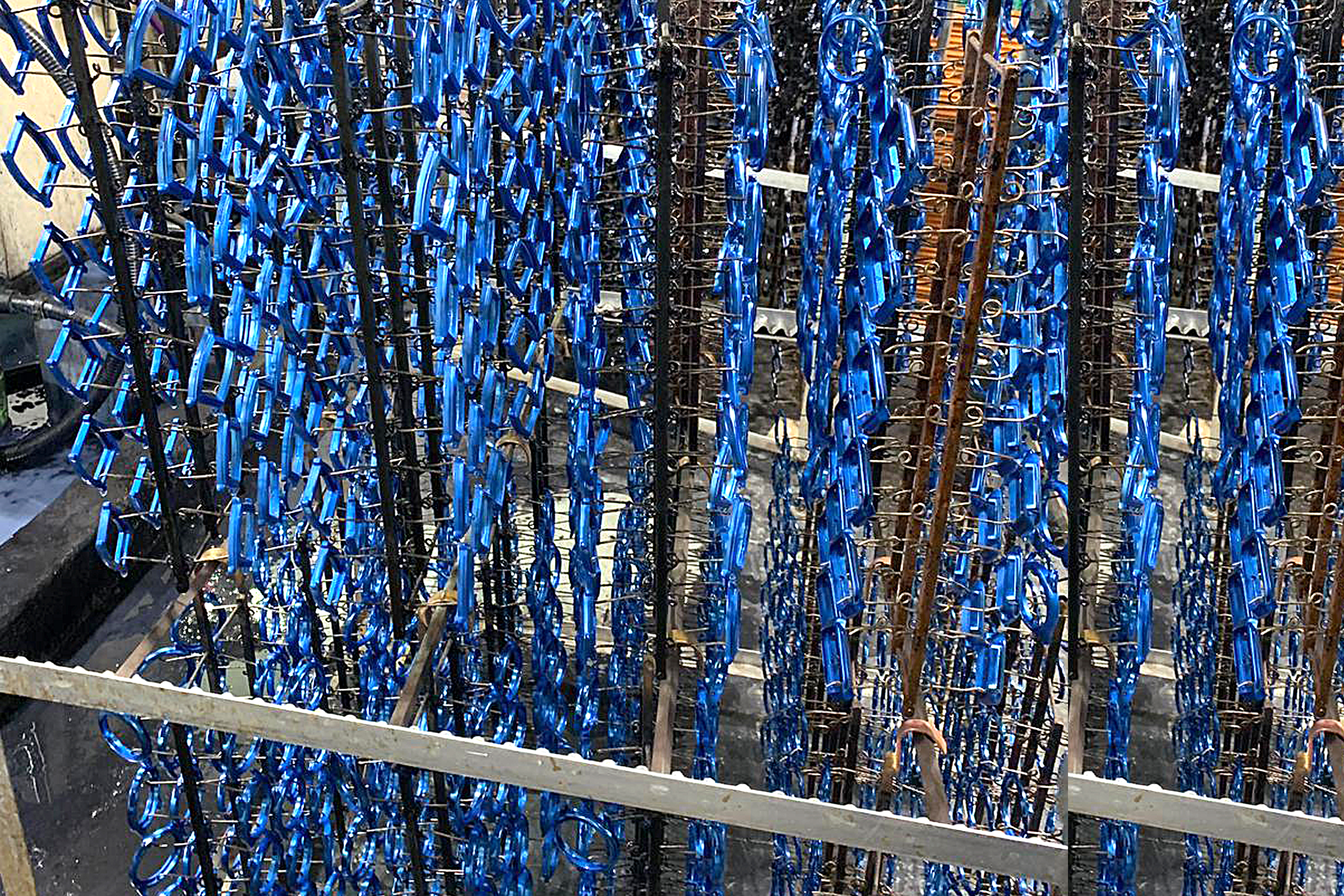

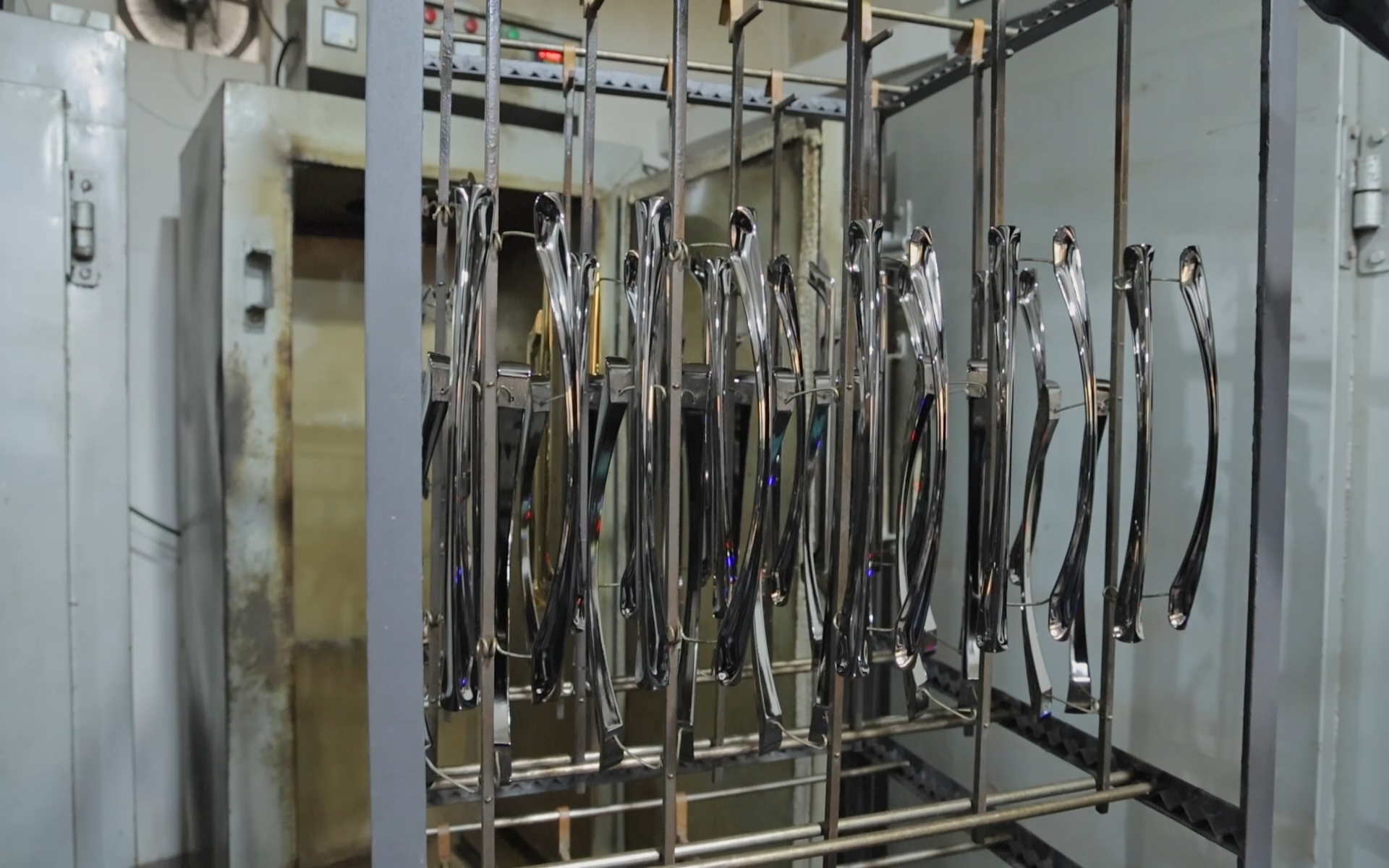

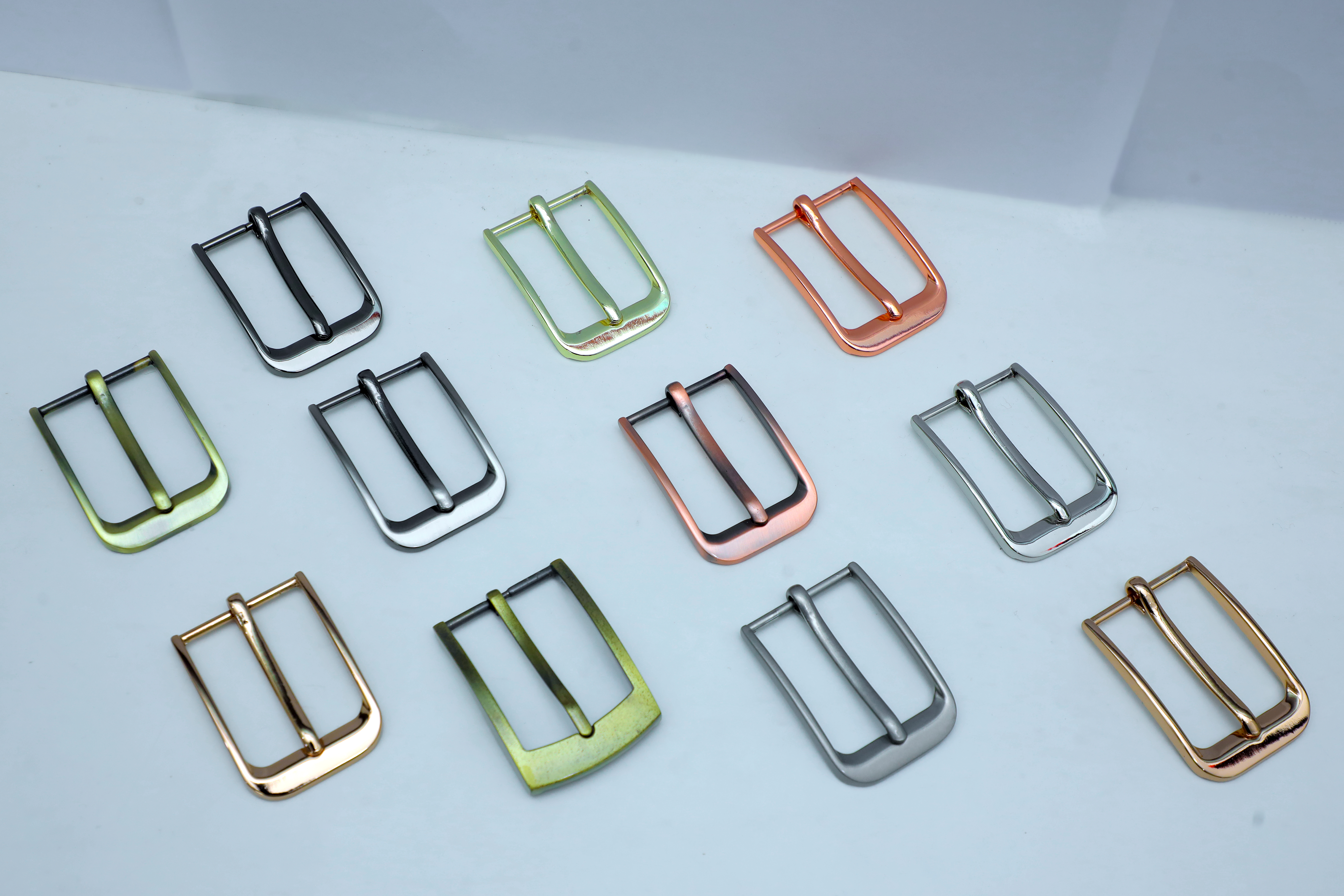

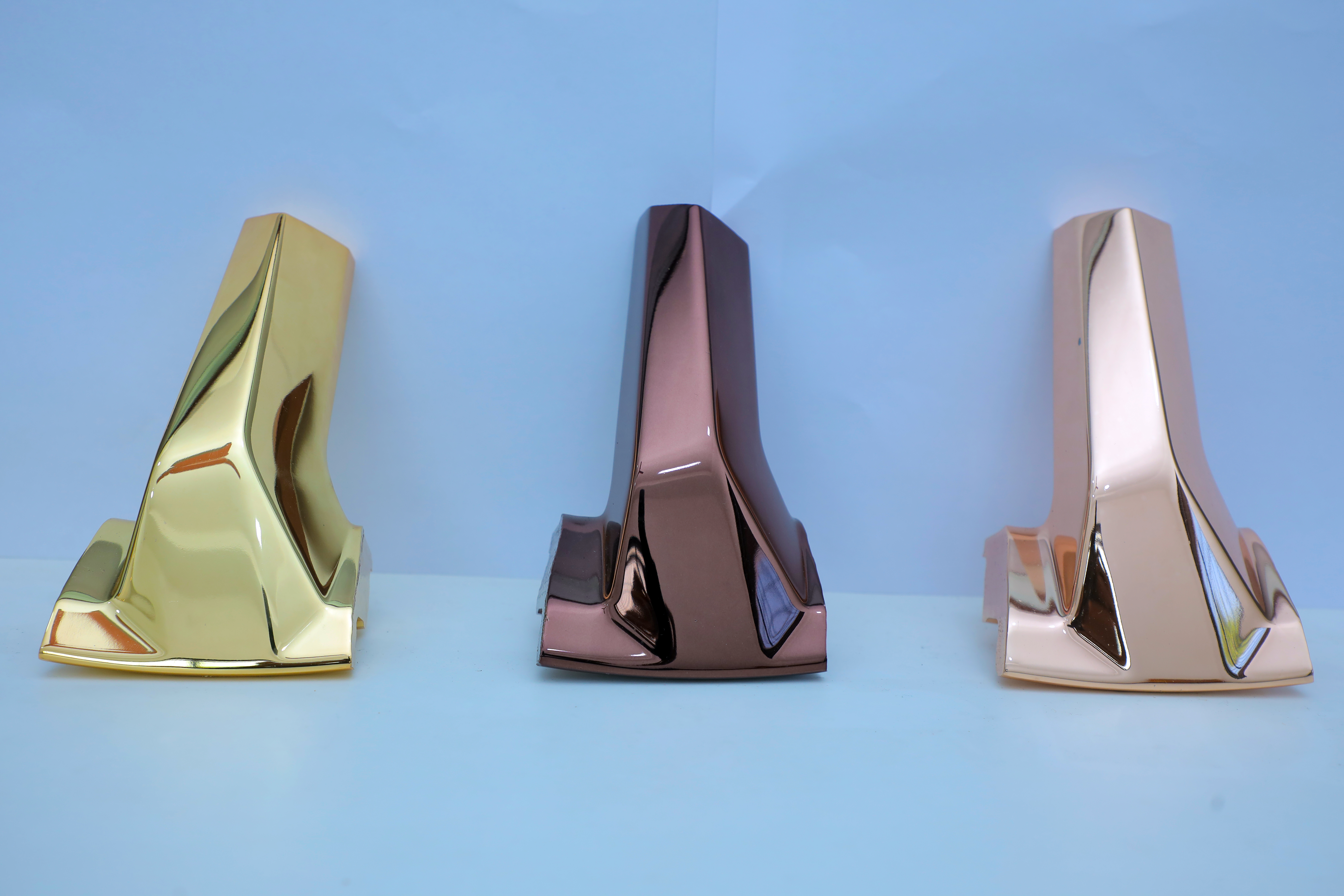

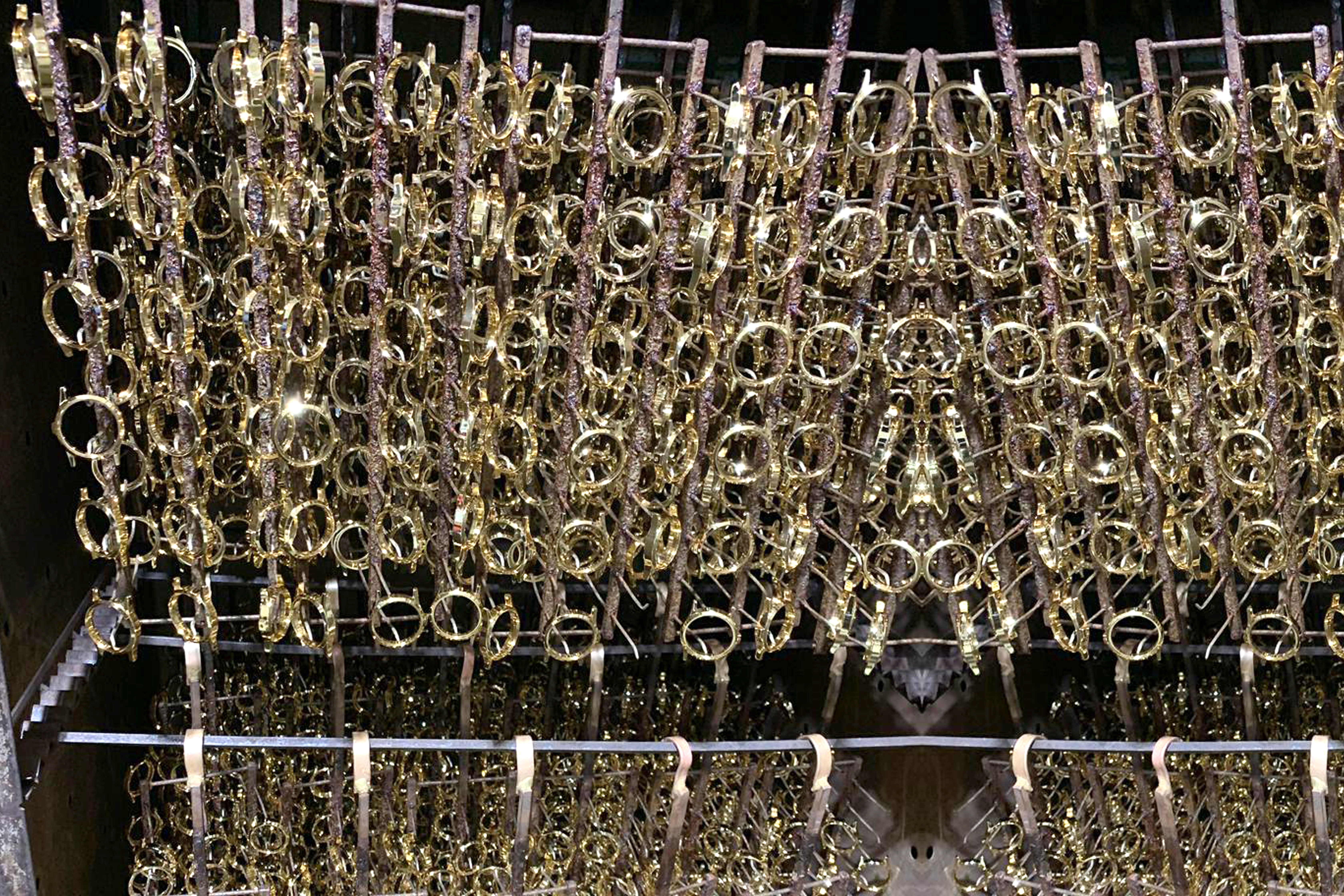

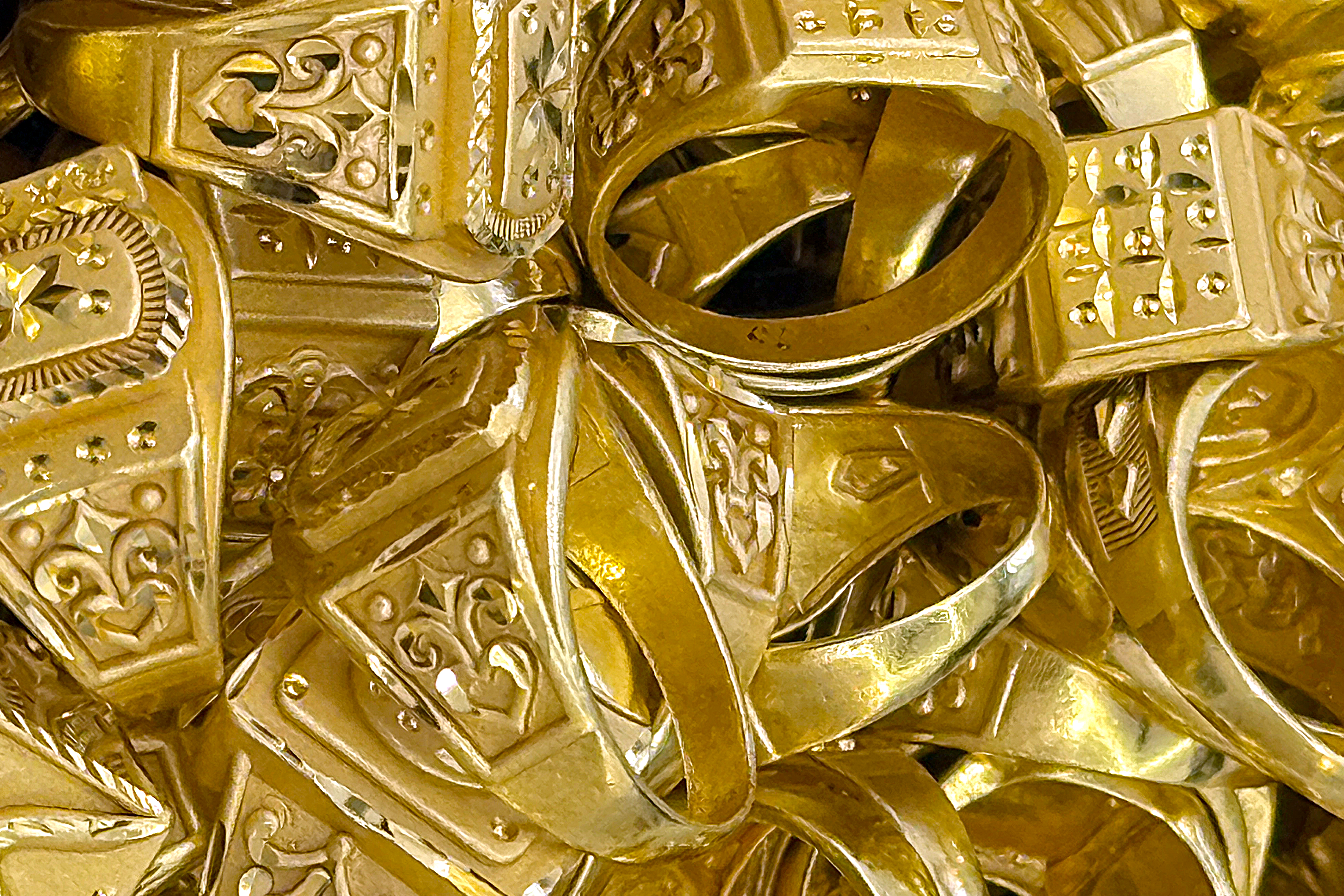

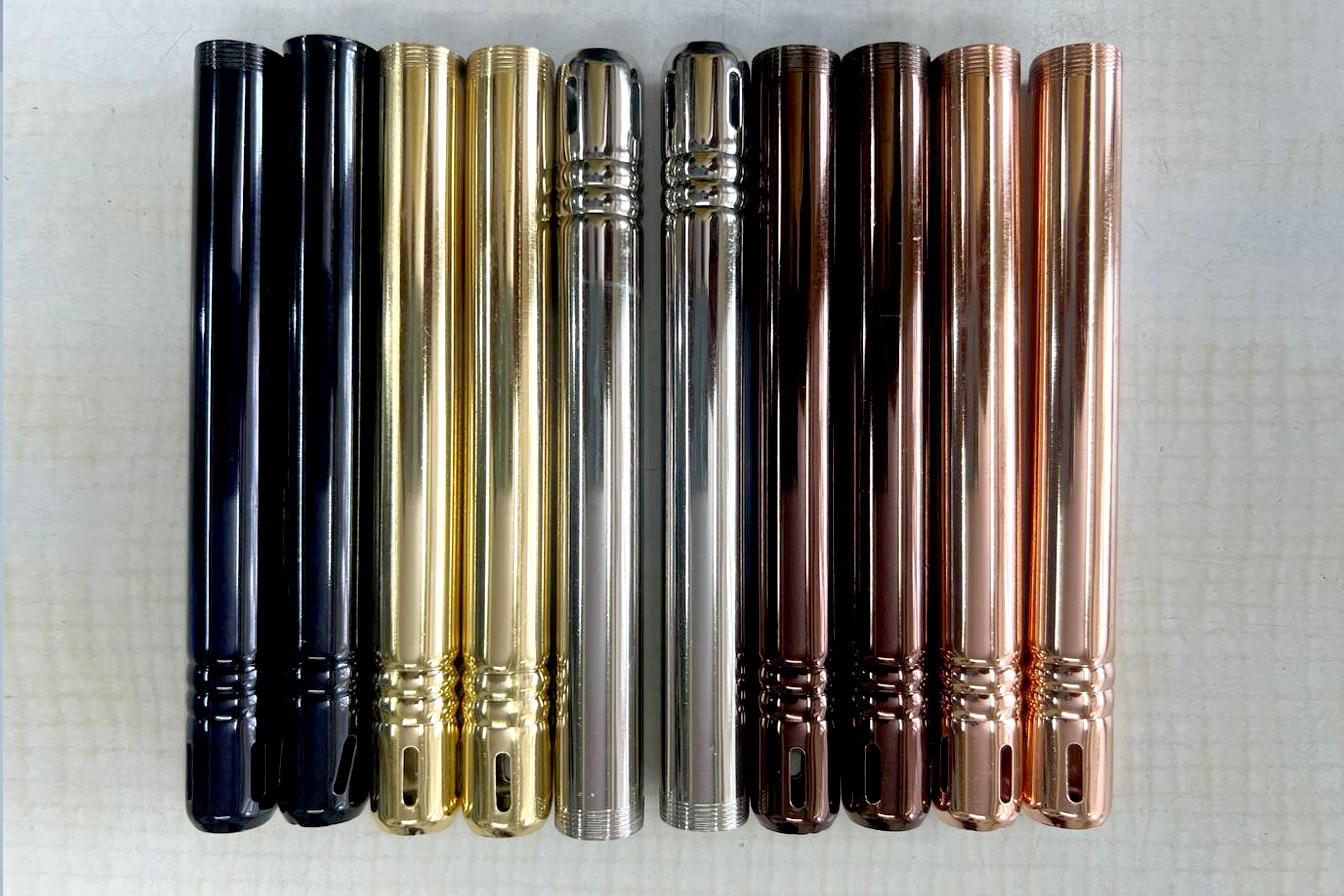

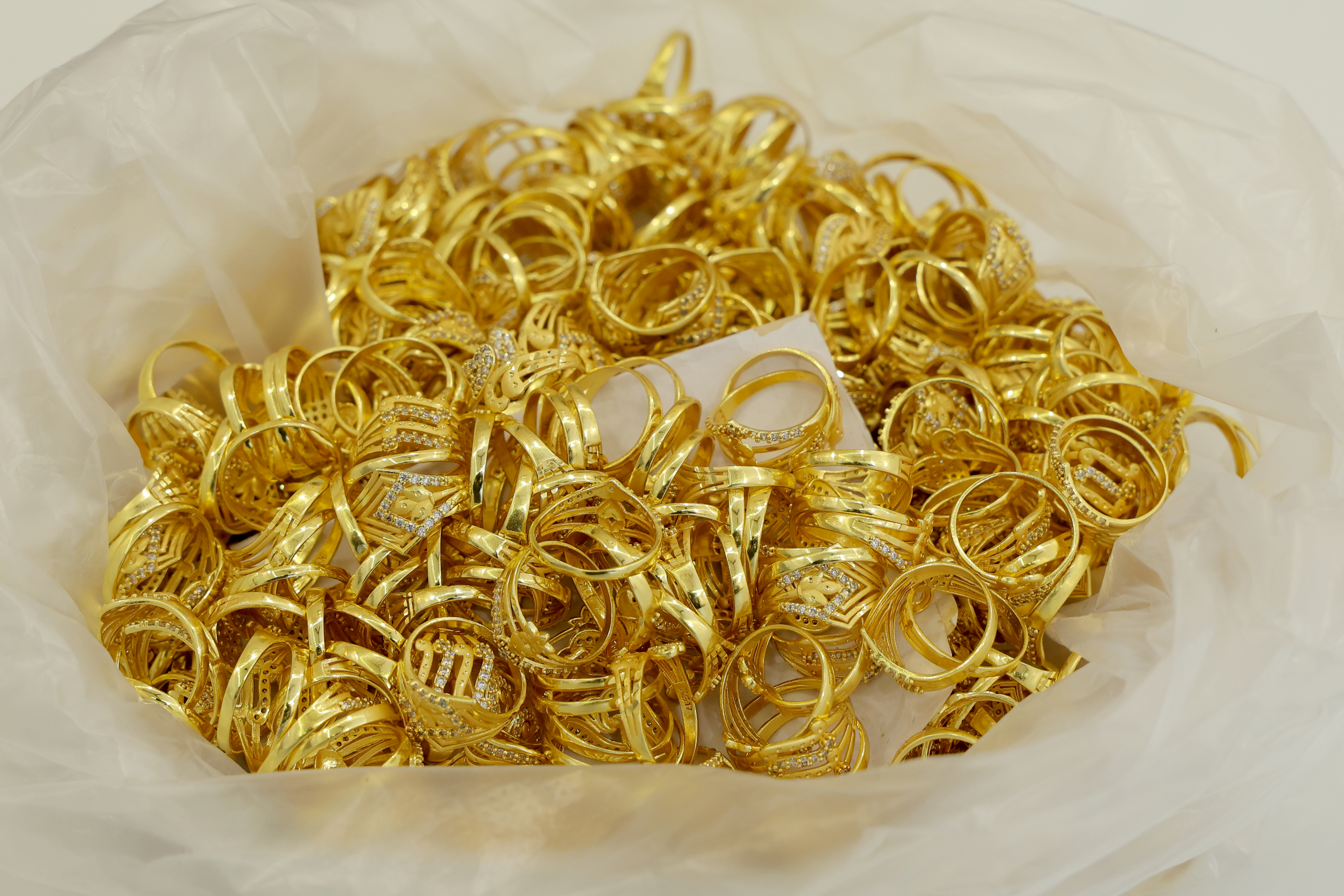

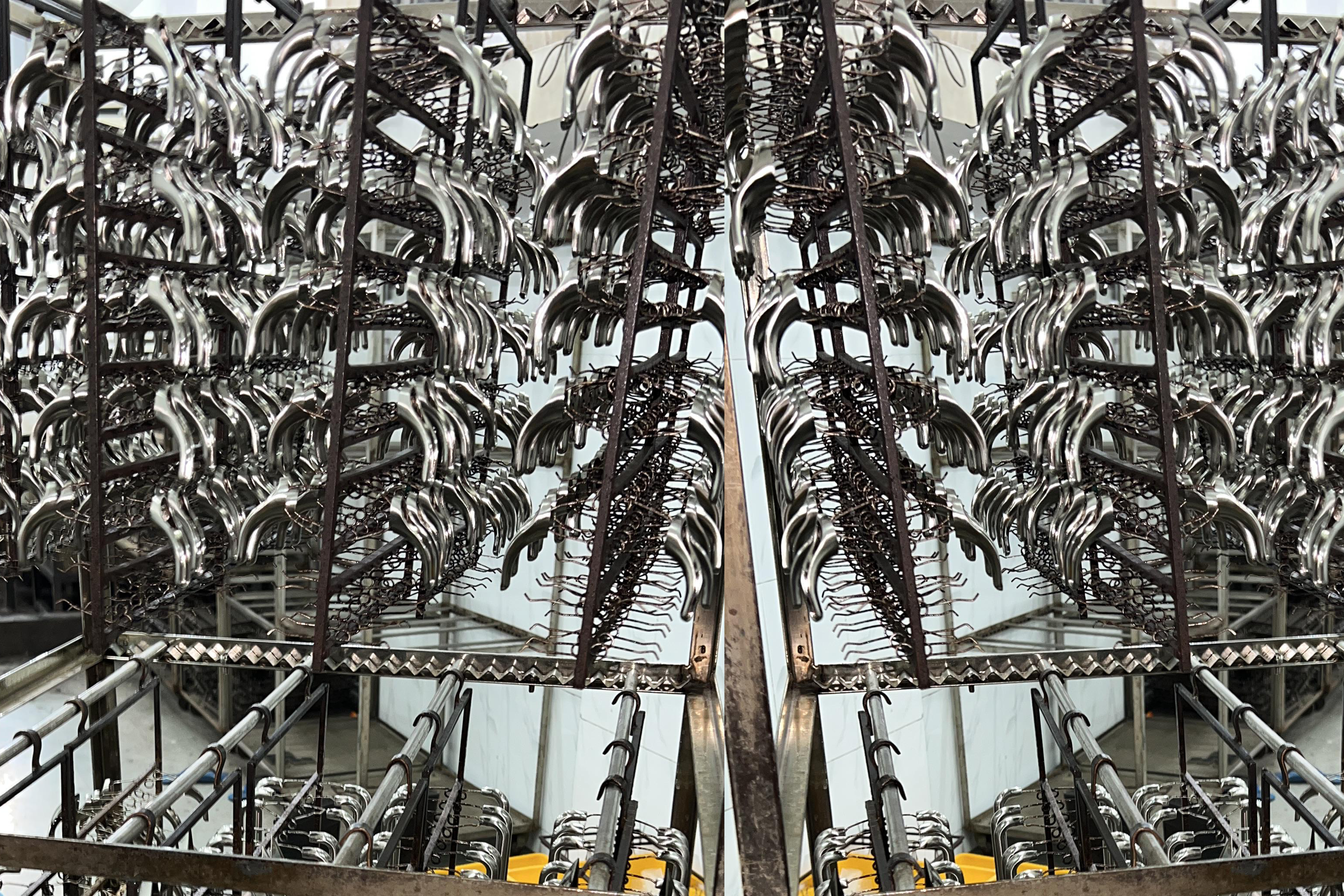

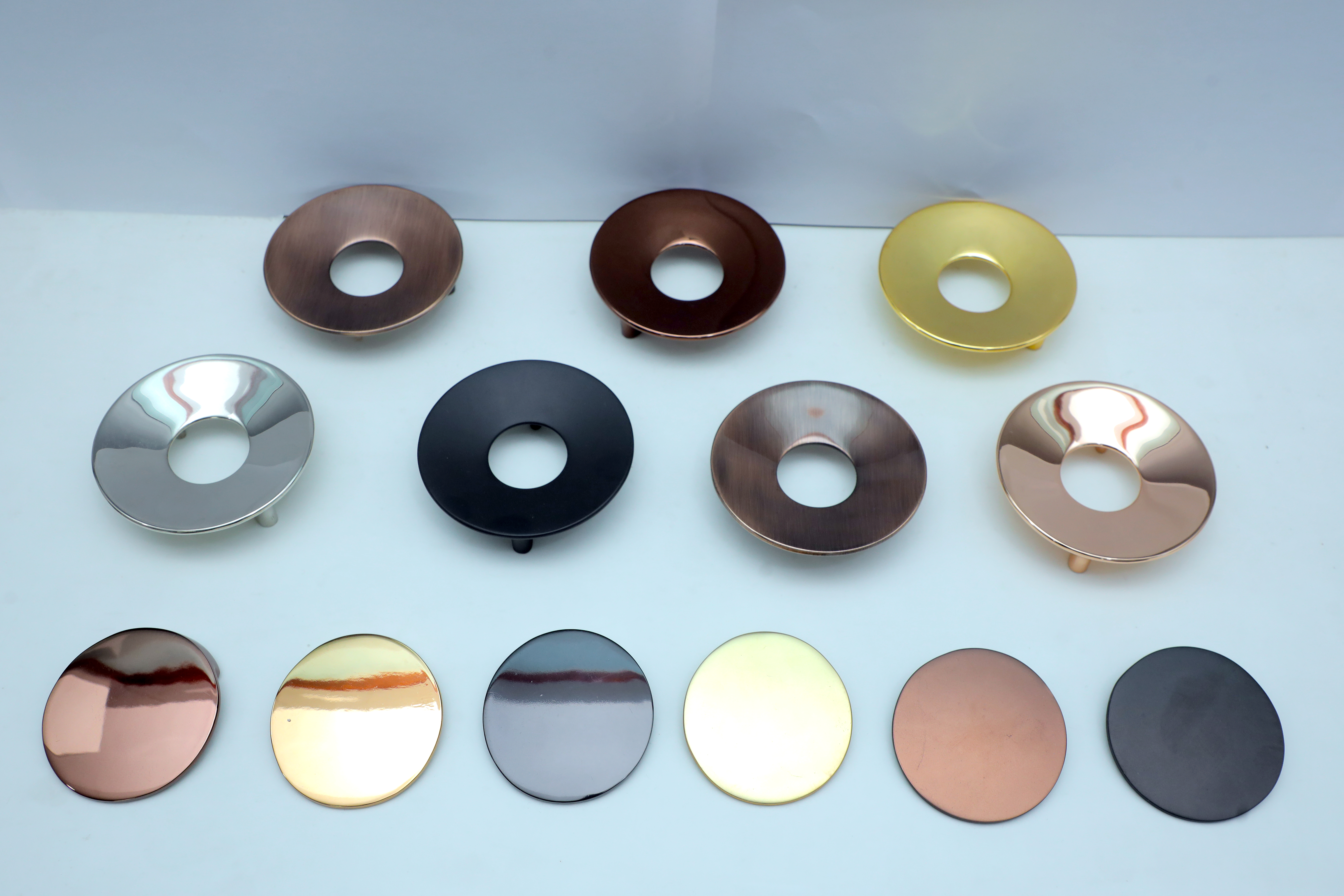

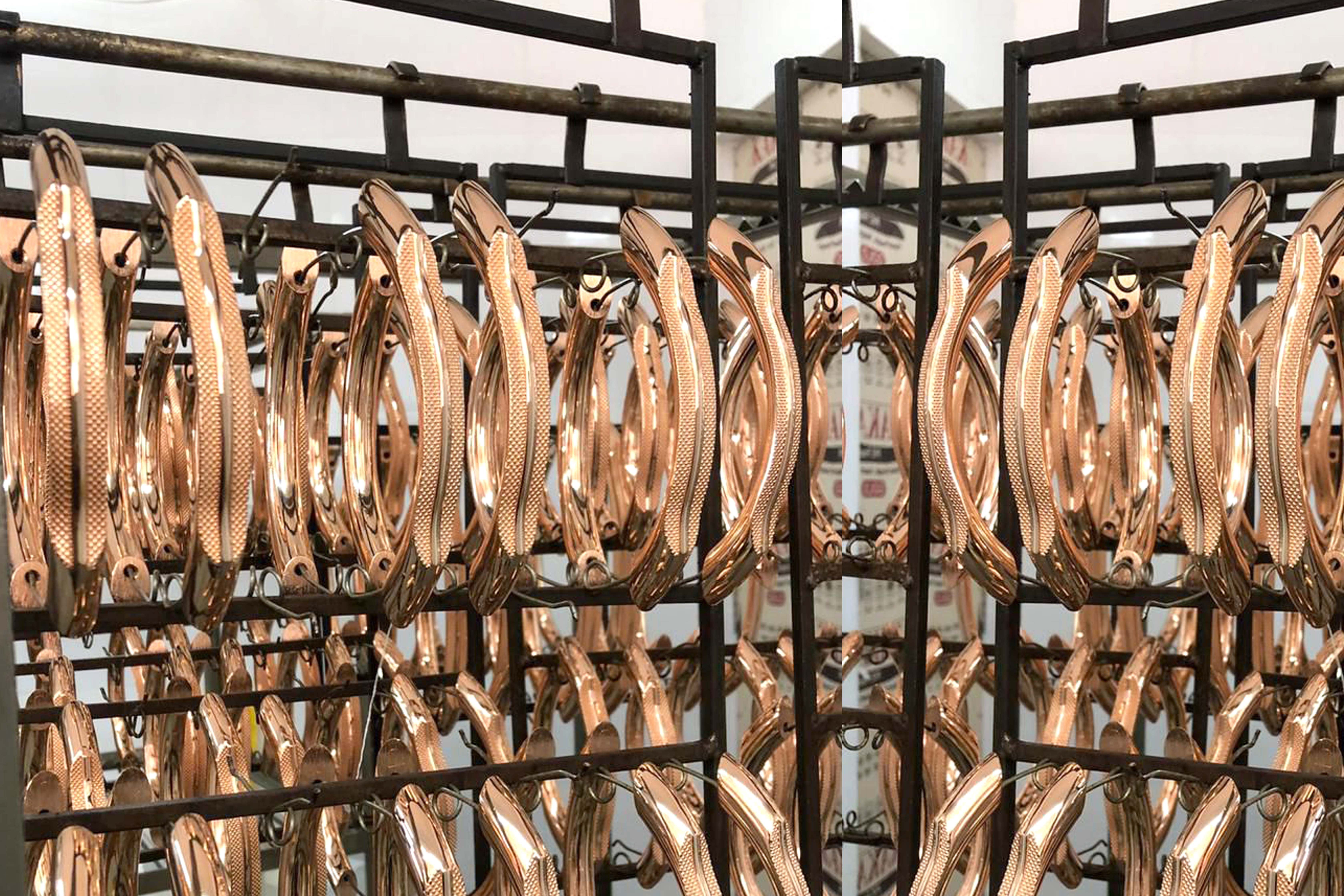

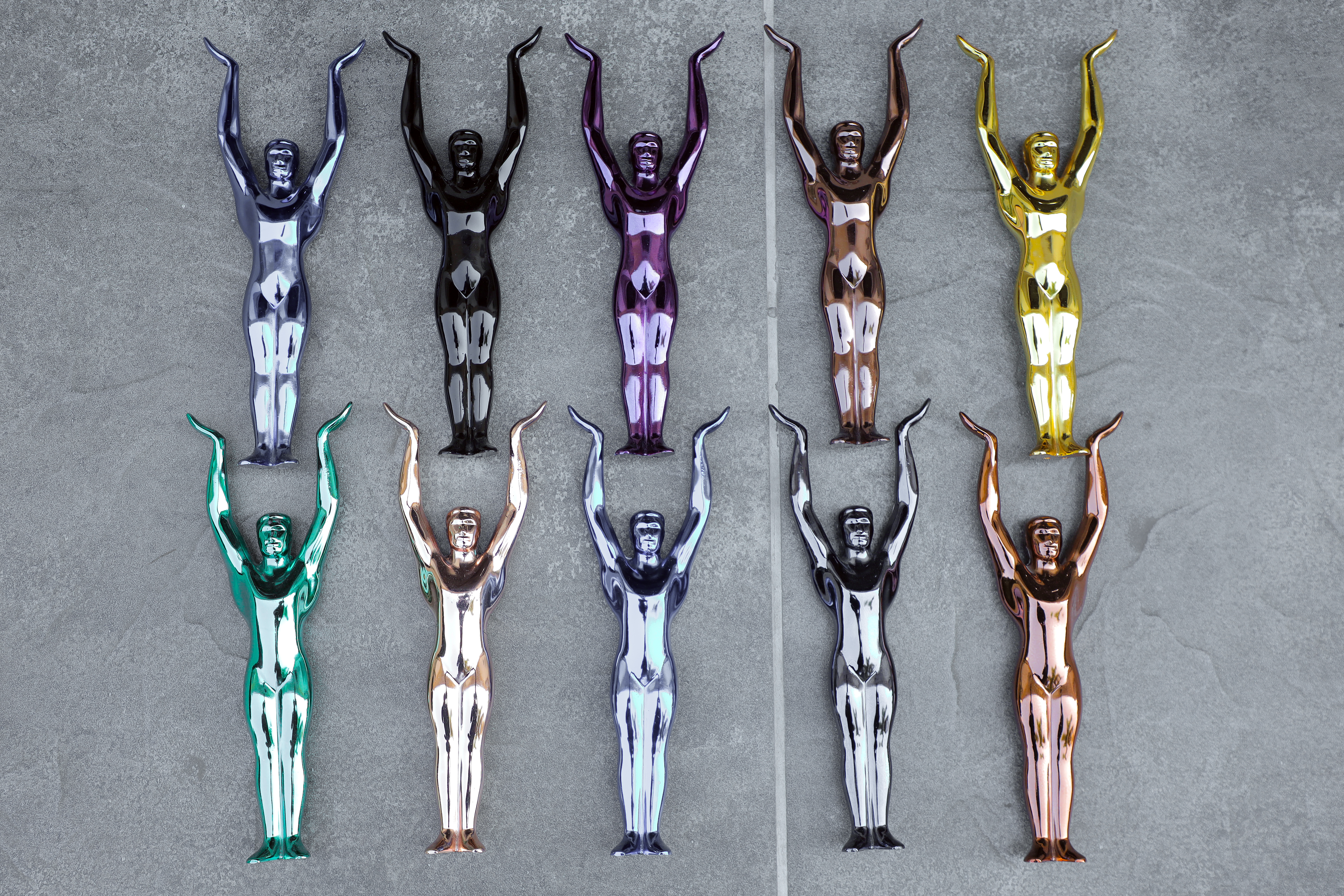

High-quality electrophoretic coating applications across various industries
